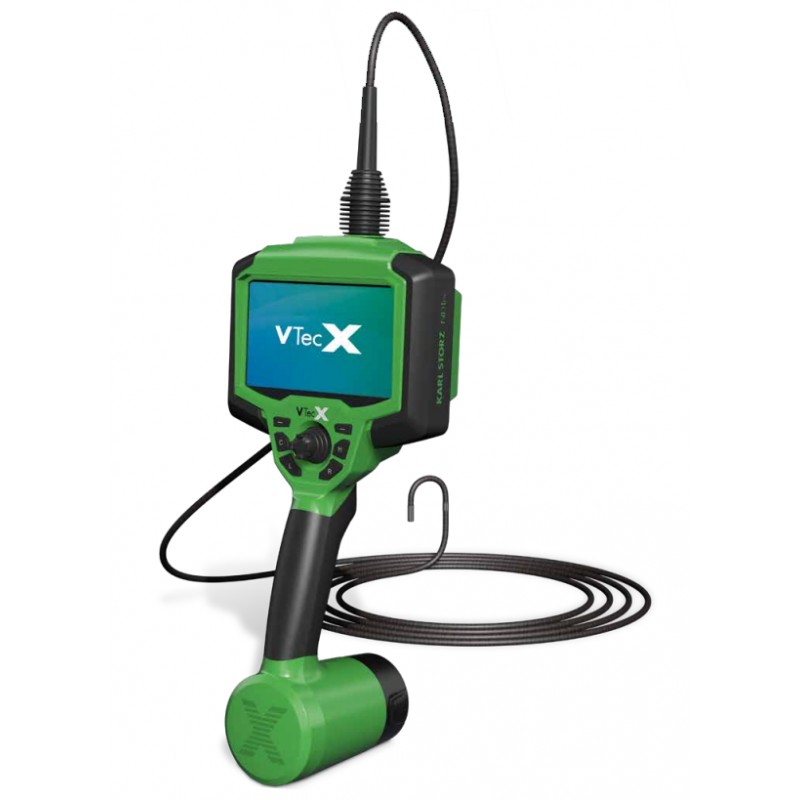

Videoscope VTECH-X



The VTec X videoscope from KARL STORZ NDTec has been designed to meet the specific demands of rugged industrial use.

Razor-sharp images, easy handling, mobility and an unbeatable price-equipment ratio make the VTec X an all-rounder for  multiple inspections.

Included accessories :
• Transportation case
• Battery charger
• Li-ion rechargeable batteries 18650-protected, 4 pieces
• Power adaptor

More details

Download

More info

The VTec X videoscope from KARL STORZ NDTec has been designed to meet the specific demands of rugged industrial use. Razor-sharp images, easy handling, mobility and an unbeatable price-equipment ratio make the VTec X an all-rounder for  multiple inspections.

KARL STORZ NDTec combines the expertise of two leading companies: KARL STORZ, a global leader in the field of medical endoscopy and NDTec, an experienced specialist in non-destructive testing. First-class technology that has proven its worth in the medical field is used for the industrial sector and further developed in an innovative way.

HANDS-FREE: PRACTICAL BACKPACK
For unrestricted freedom of movement. Ideal for applications where a case cannot be transported.

OPTIONAL ACCESSORIES
• Backpack
• GTR (Guide Tube Rigid) with handle
• Dekabon tubing (semiflexible guide tube)
• Centering aid (for centering video probes in tubes)
• „Magic Arm“ (large or small holder)
• Magnetic stand
• Wireless SD card (WLAN), SD USB reader
• Li-ion rechargeable batteries 18650-protected

TECHNICAL DATA

Camera sensor : CMOS
Light source : LED white light, infrared, ultraviolet
Screen : 5,5“ 16:9, Full HD
Power supply : 4 rechargeable batteries, type: 18650-protected 3.6/3.7 V
White balance Automatic/manual
Image storage
Photo : .bmp
Video : .avi
Medium : SD card, SDHC class 2, max. 128 GB
Data transmission : SD card, USB 2.0, wireless (optional)
Articulation
Range : 360°
Control : 4-way motorized with joystick
Sensitivity : lock, incremental, normal
Connections
Voltage : 3.6 V, DC
Data transmission : Micro USB 2.0
Image transmission : HDMI 2.1
Base Unit
Protection class : Handset IP54, probe IP65
Ambient temperature : Handset -10°C to +50°C, probe -20°C to +70°C
