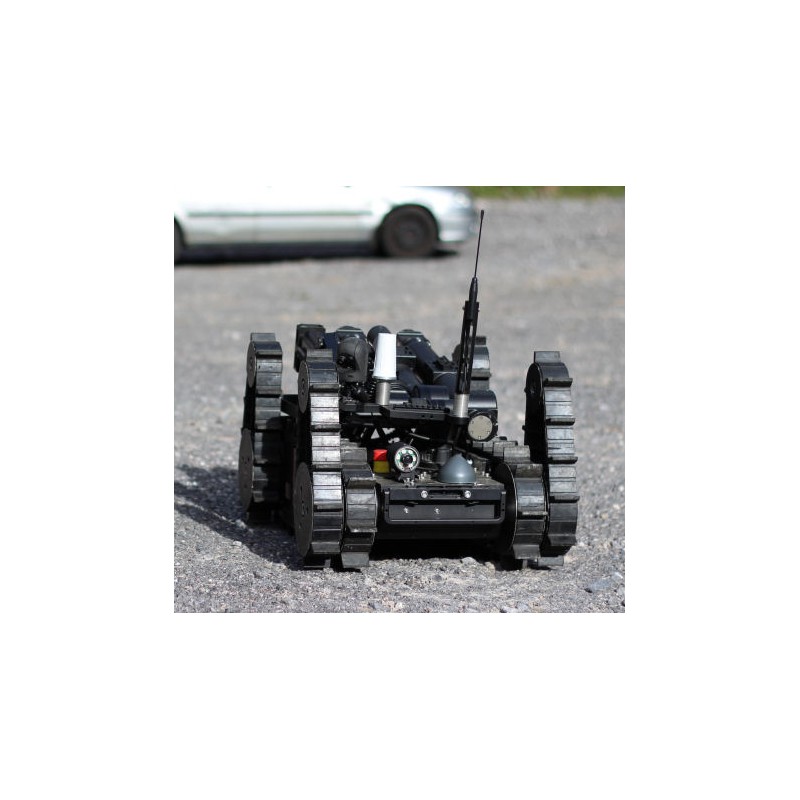

Remote operated robot ZEUS

R627300



Zeus has been designed for the EOD and SWAT community to deal with a range of scenarios from simple reconnaissance to full scale EOD render safe procedures. The highly modular design allows the ROV to be configured from a lightweight simple ROV to a fully capable EOD ROV.

The modular design also allows operators to repair ‘in field’.

More details

Download

More info

Zeus has been designed for the EOD and SWAT community to deal with a range of scenarios from simple reconnaissance to full scale EOD render safe procedures. The highly modular design allows the ROV to be configured from a lightweight simple ROV to a fully capable EOD ROV.

This ability to configure ‘in field’ gives maximum capability with minimum equipment. No longer will teams use multiple ROVs, now all those roles can be fulfilled with 1 platform. Now they have the strength and capability of heavier ROV, but with all the advantages of a lightweight ROV.

The modular design also allows operators to repair ‘in field’. Should part of the ROV be damaged in action, there is no longer any need to send the entire unit back to a workshop for repair. By simply replacing the damaged part via the quick release modular construction, the ROV can be back up and running in minutes.

MANIPULATOR
Through claw camera view
Ability to mount additional tools on side of manipulator
Quick release
360° rotation

MAIN CHASSIS
Aluminium, stainless steel & titanium construction
Interfaces for 12v, 24v, RS232, camera & tether
Kevlar track with extreme climb ability
Waterproof & dustproof

CAMERAS
Up to 5 cameras : through claw, front view, rear view, pan tilt, nomad ‘go anywhere’
Single camera design throughout ROV
Low light capability
High resolution
Infra red capability
Integrated white & infra red illuminators
Quick release mounting system

ARTICULATING TRACK SYSTEMS
Long for stability e.g. on stairs
Short for manoeuvrability inside tight spaces
Quick release articulating track module

ARTICULATED ARM
Options for 1 section, 2 section and 3 section arm
Turret
No external wiring
Quick release
External Interfaces
Aluminium, stainless steel and titanium construction, reducing weight and centre of gravity

TECHNICAL DATA

Total assembled weight : 43 kg
Max speed (in any configuration) : 3 km/h
Payload : Up to 30 kg on flat surface
Drag capability : 50 kg on medium friction surface
Arm lift capability : retracted 21 kg, extended 7 kg
Operator Control Unit : Pelicase 1520, dimensions 485 x 392 x 192 mm, weight 10 kg
